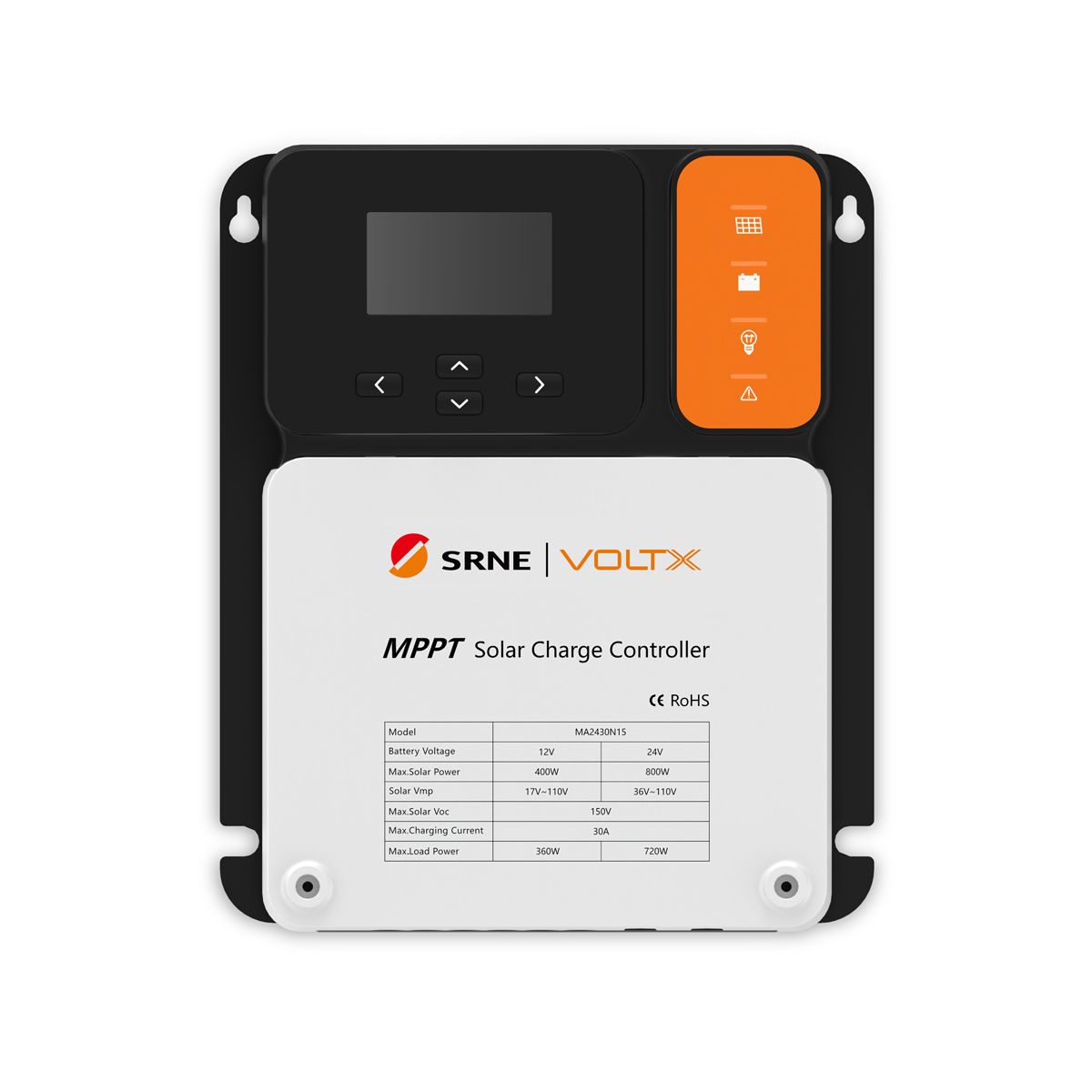

SRNE VOLTX 30A MPPT Controller
The SRNE VoltX 30A MPPT Solar Charge Controller utilizes advanced Maximum Power Point Tracking technology with up to 99.9% efficiency, ensuring that you maximise solar energy generation from your panels. It features real-time temperature monitoring with a Remote Temperature Sensor, comprehensive communication options including TTL, RS485, CAN, and Bluetooth, and robust protection functions. Able to work with standard off-grid 12/24V solar panels, this regulator is highly versatile and is proven to significantly increase the overall efficiency of solar power systems.

SRNE VOLTX 30A MPPT Controller

SKU: srne-voltx-30a
$204.00Price

  • Features

    • Advanced maximum power point tracking
    • Temperature sampling and control
    • Works with standard off-grid 12V/24V solar panels
    • Intelligent protection functions
    • Bluetooth connectivity, TTL and RS485 communication

  • SPECIFICATIONS

    Static power consumption:

    ≤30mA

    Battery Type:

    USE/FLD/GEL/LI/SLD(Default)

    System voltage:

    12V/24V

    Battery's operating voltage range:

    8V-32V

    Rated charging current:

    30A

    Maximum PV Input Current:

    27A

    Maximum solar panel power:

    400W/12V; 800W/24V

    Maximum PV open-circuit voltage:

    150V

    MPPT operating voltage point range:

    (Battery Voltage +2)~110V

    MPPT tracking efficiency:

    >99%

    Charging conversion efficiency:

    85%-98% (10%-100% of rated power)

    Rated load current:

    30A

    Load operating mode:

    Pure light-dependent control, light and time-dependent control, manual mode (default), debugging mode, normally opened.

    TTL communication:

    Baud Rate 9600kps

    RS485 communication:

    One isolated RS485 communication port, with power output of 5V200mA, baud rate of 9,600kps by default and adjustable.

    Bluetooth communication:

    Built-in

    CAN communication:

    RV-C Protocol

    Historical data:

    Can store historical data of the past 300 days

    Protection function:

    PV Overvoltage Protection, PV Reverse Connection Protection, PV Short-Circuit Protection, Nighttime Reverse Charge Protection, Input Limited Power Protection, Overtemperature Protection, Load Short-Circuit Protection, Load Overload Protection, Battery Supervoltage/Over-discharge Protection, Battery Reverse Connection Protection and Battery Terminal Short-Circuit Protection.

    Grounding type:

    Co-negative design and negative grounding

    Cooling mode:

    Natural Cooling

    Parallel connection for charging:

    No

    Charging voltage line loss compensation:

    No

    Support full settings:

    Yes

    Constant voltage output setting:

    Yes

    Charging temperature compensation of lead-acid battery:

    Yes

    Temperature protection:

    Yes

    Overload/short-circuit protection:

    Yes

    Load pre-start:

    Yes

    DIMENSIONS & WEIGHT

    Dimension:

    260 x 216 x 83.2mm

    Mounting Hole Spacing:

    200 mm

    Fixed Hole Position:

    Φ10mm

    Weight:

    2.3kg
