Get transparent battery quality with the VoltX 48V 100Ah Premium Lithium Battery. Featuring a clear case, the expert built and high-grade components of this power pack are evident in a single glance. It's ideal for applications requiring a high-voltage output and with a prismatic cell composition plus integrated BMS, this will provide you with the stable, reliable power you need. Another perk is that you can connect a maximum of 6 power packs here in parallel. It's tested to deliver 100% capacity, so you get to use up every bit of power you need for each pack with this.

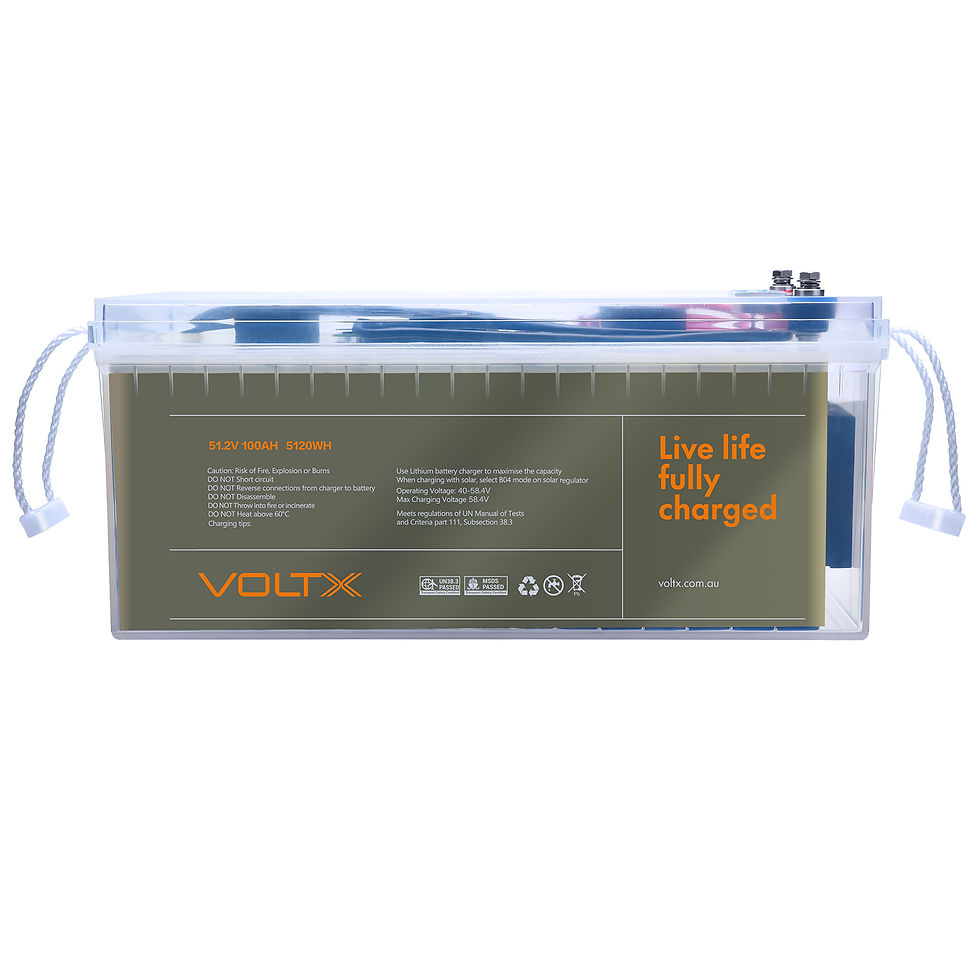

VoltX 48V 100Ah Pro Lithium Ion Battery
FEATURES
- 4000 cycles, 100amps
- Premium prismatic cells
- Built-in BMS provides extra battery protection
- 5 years Australian warranty
- Power voltage display
- Approved in accordance with IEC 62619
SPECIFICATIONS
Nominal Voltage:
51.2V
Nominal Capacity:
100Ah
Charging Voltage:
58.4V
Rated Energy:
5120Wh
Discharge Cut-off Voltage:
40V
Max. Continues Discharge Current:
100A
Standard Discharge Current:
100A
Max. Discharge Current 5 sec:
300A
Approx Life Cycles:
4000
Charge Method:
CC/CV
Charger:
58.4V50A
Working Temperature Range:
Charge: 0°C to 45°C
Discharge: -25°C to 60°CStorage Temperature:
10°C to 50°C
Battery Cells:
Prismatic
Case Material:
ABS Plastic
Parallel Connection:
Yes, max 6 batteries
Series Connection:
No
Warranty in Years:
5
DIMENSIONS & WEIGHT
Dimensions:
522(L) x 238(W) x 223(H)mm
Weight:
38kgs
Dimensions:
522(L) x 238(W) x 223(H)mm
Weight:
38kgs
